While all Lectric eBike Displays behave similarly, components such as graphics, settings, and control pad buttons may vary across models. You can find instructions on how to operate your display inside your eBike's user manual.

Featured below are brief excerpts from Lectric user manuals that cover basic display functionality by type.

Monochrome LCD Display Functions:

Display Readouts

Location

Description

1

Walk Mode, Cruise Control, and Pedal Assist (PAS) Level Indicator

2

Odometer, Trip A, Voltage, Current, Trip Timer (TM) readouts

3

Battery level indicator bar

4

Speedometer in MPH or KM/H

5

Light On/Off Indicator

6

Mile and kilometer indicators

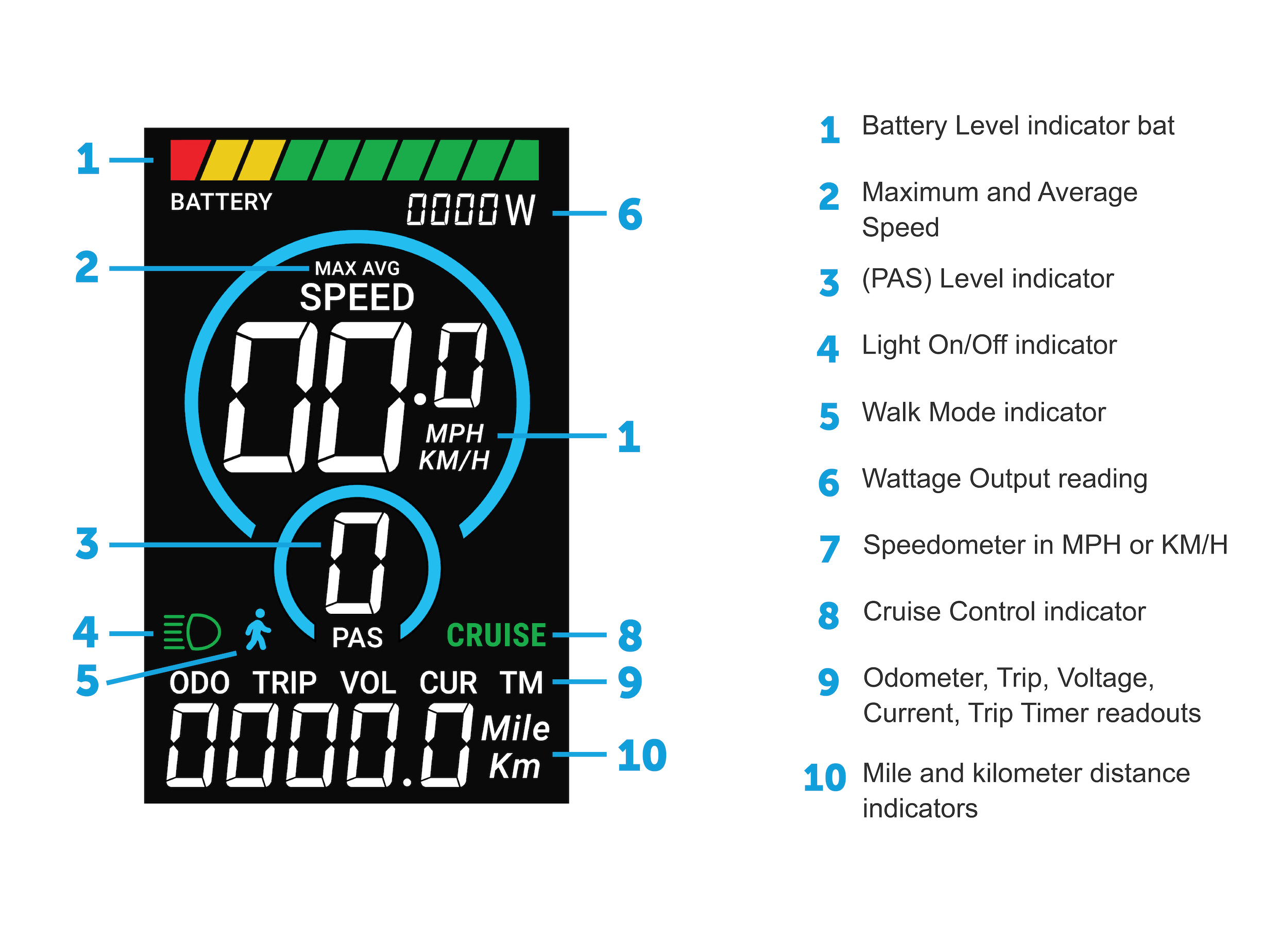

Custom Multi-Color LCD Display:

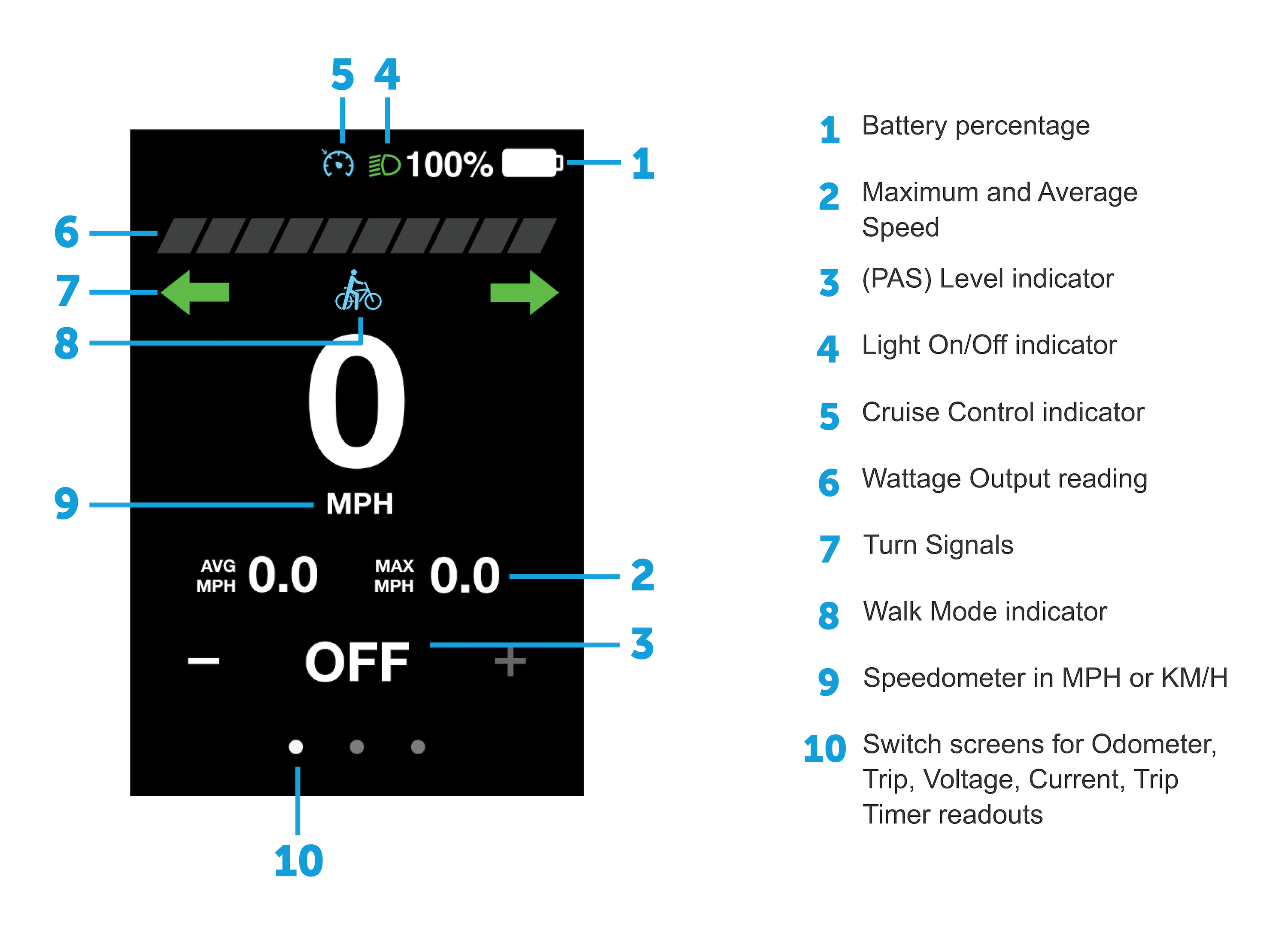

Custom Multi-Color TFT Display with a Detachable Screen:

Operating the Display:

Function

Instructions

Turning the bike ON/OFF

Hold the power button until the display turns on

Increase Pedal Assist Level

Press plus (+) button

Decrease Pedal Assist Level

Press minus (-) button

Turn ON/OFF front/rear lights

Hold the plus (+) button for 3 seconds until lights turn on, repeat to turn off

Toggle Odometer, Trip A, Trip B, Voltage, Current, Trip Timer (TM)

Press and let go of the power button

Max Speed and Average Speed

Press and hold the plus (+) and power button simultaneously to toggle between the speedometer, max speed, and average speed

Update Display Settings

To change display settings, hold the plus (+) and the minus (-) buttons simultaneously to enter into the Settings Menu. Press the power button to toggle between each numbered setting. To adjust the value of each setting, click the plus (+) and the minus (-) buttons as needed.

Notes: The trip meter will reset when the bike is powered off. The maximum and average speed will be calculated for a given trip and will reset when the bike is powered off. When the bike has not been used for 10 consecutive minutes, the display will automatically shut down. The pedal assist and throttle features will no longer work when the display is turned off.

More details about the operation of your Lectric eBike can be found in the user manual.

If you have any questions, please don't hesitate to contact our support team at contact@lectricebikes.com or (602) 715-0907.
